CHILLER

Water Chiller


TYPICAL USE

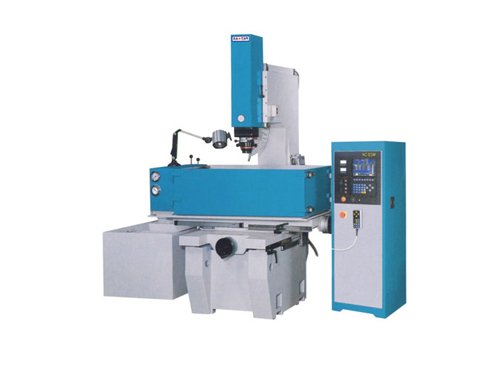

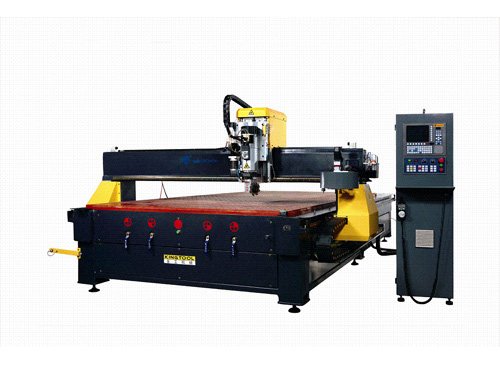

Cools the critical components of machine to enhance the productivity. Laser head, Mould & EDM coolant cooling.

WCB 005 WCB 010 WCB 020 WCB 030 WCB 050 WCB 075 WCB 100 WCB 150 WCB 200 Model
1.75 3.5 7 10.5 16.6 26 35 53 70 Cooling Capacity (kW)
1Ph/230V/50Hz 3Ph/440V/50Hz Operating Voltage
1 2 3 4 7 10 13 20 22 Power : Ref. System (kW)
0.33 0.33 0.55 0.55 1.1 1.5 1.5 4 6 Pump (kW)
10-15 10 20 30 50 80 100 150 200 Required flow rate (L/MIN)
1/2" X 1/2" BSP 1" X 1" BSP 1-1/2" X 1-1/2" BSP 1-1/2" X 1-1/2" BSP 2" X 2" BSP 2" X 2" BSP Water In/Out size (INCH)
50 130 160 250 350 400 600 800 Weight (kg)
365 650 750 1100 1000 1000 Dimensions W (mm)
550 700 800 1190 1780 2200 D (mm)
570 1215 1300 1665 1660 1880 H (mm)
15 30 50 100 200 200 400 400 Tank Capacity (LITRE))
  View   View   View   View   View   View   View   View   View Datasheet
