CHILLER

Spindle Chiller


TYPICAL USE

Ensure Accuracy of the spindle at high speed by maintaining spindle oil temperature, pressure and oil viscosity.

SOC 003 SOC 005 SOC 007 SOC 010 Model
1 1.75 2.9 3.5 Cooling Capacity (kW)
3Ph/220V/50Hz 1Ph/220V/50Hz Operating Voltage
0.6 1 2 3 Power : Ref.system (kW)
0.25 0.33 0.55 Pump (kW)
6 10 17 Required Flow Rate (L/Min)
1/2" X 1/2" BSP 3/4" X 3/4" BSP Water In/Out Size (Inch)
60 75 95 110 Weight (kg)
360 490 Dimension W (mm)
440 460 D (mm)
770 900 H (mm)

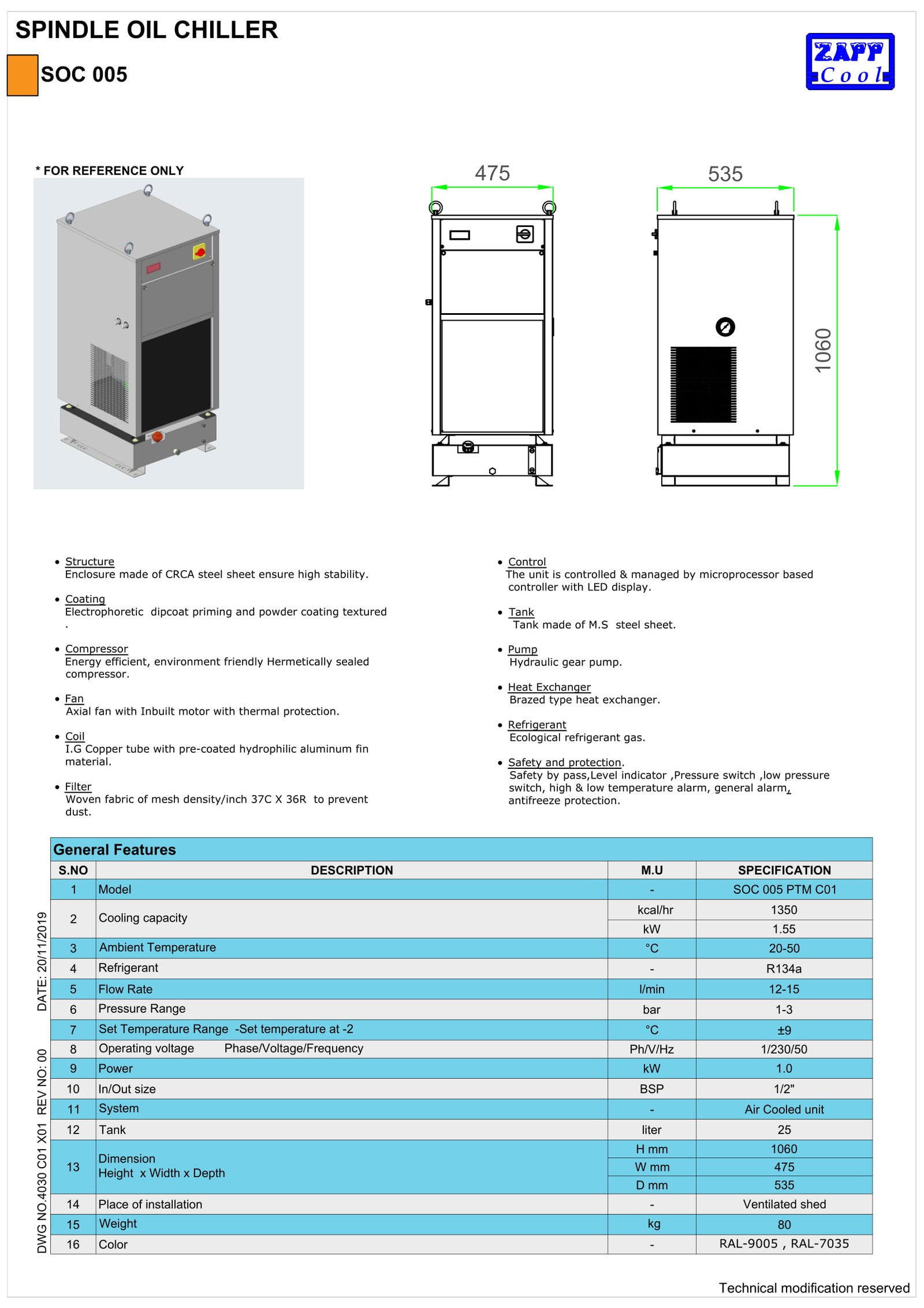

  View   View   View   View Datasheet
